The Solar PV Cell Silver Recovery Plant is a complete recycling system designed to recover silver from silicon powder generated during photovoltaic module recycling. Through advanced processes such as acid leaching, precipitation, filtration, and reduction, the system efficiently extracts silver resources.
Solar PV Cell Silver Recovery Plant Process Flow
The solar panel silver recovery system mainly uses chemical separation, precipitation, reduction, and purification processes to extract silver from silicon powder.
1. Silicon Powder Collection
Before chemical treatment, operators prepare the silicon powder to improve the silver recovery efficiency.
2. Acid Leaching Process
The prepared silicon powder enters a corrosion-resistant reaction vessel. During the leaching process, acid is added under controlled conditions to dissolve silver components.
After the reaction, solid-liquid separation is performed using a filter press system.
3. Precipitation
The mixture enters a reaction tank, where operators add a sodium chloride solution to convert dissolved silver nitrate into silver chloride precipitation. Advanced filtration systems, including vacuum filtration equipment, then separate the silver chloride efficiently.
Multiple washing stages help remove residual impurities such as tin and other metal compounds.
4. Silver Reduction and Purification
The purified silver chloride enters the reduction reactor. A reducing agent is added to convert silver chloride into silver powder. The final silver powder is collected through vacuum filtration and drying systems.
5. Electrolytic Refining and Ingot Casting

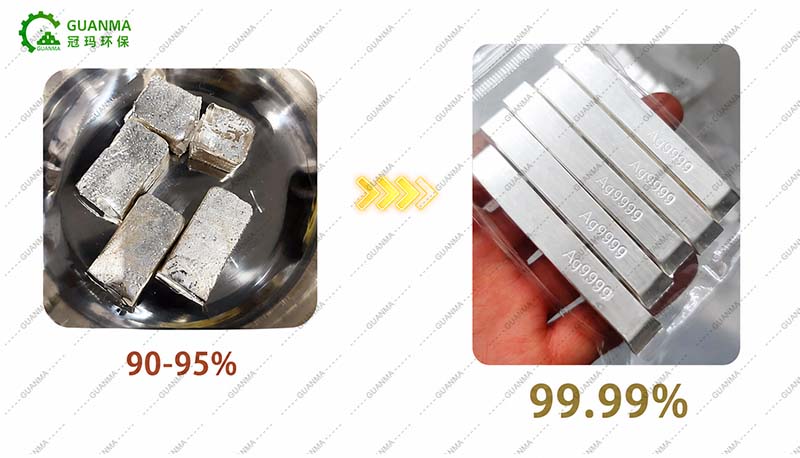

The recovered silver powder can be further purified to produce 99.99% high-purity silver ingots through silver electrolysis equipment and ingot casting equipment.

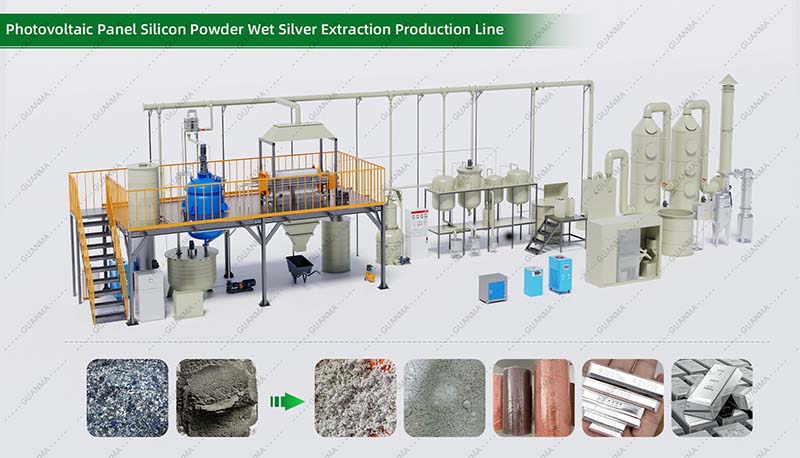

Key Equipment of Solar Cell Silver Recovery Plant
A complete wet silver recovery line usually includes: corrosion-resistant reaction vessel, chemical dosing system, filter press and vacuum filtration system, reduction reactor, agitation tank
and exhaust gas treatment.
The Solar PV Cell Silver Recovery Plant provides an efficient solution for extracting silver from recycled silicon powder through advanced leaching, precipitation, filtration, reduction, and refining technologies. By producing 99.99% high-purity silver ingots, the system helps maximize the economic value of PV waste while supporting the development of a circular solar industry.
Guanma Machinery provides customized photovoltaic recycling solutions, including PV waste recycling system and silver extraction systems. Contact us today to get a professional solution based on your raw materials, processing capacity, and investment requirements.
