Precious Metal Refining System for E-WASTE
Precious metal and refining system for E-waste, mainly separate precious metal from E-waste, such as copper, gold, sliver, and PGM’s can be solded directly or as anodes for Electrolysis process depending on our customers needs. The recovery rate can get more than 99%.
Product Description
Precious metal and refining system for E-waste, is mainly to get gold, sliver, platinum, palladium, rhodium from E-waste, like computer motherboards, phone boards, TV boards and other home appliances. After this process, E-waste can get higher values.
Raw Material
Precious metal and refining system for E-waste can extract gold, sliver, platinum, palladium, rhodium from many kinds of E-waste, such as computers, laptops, phones, TVs, radiators and other home appliances.
SIM card
Cpu
Electronic Components
communication board
Capacitance
Phone Boards
Computer Boards
RAM
Final Product
The final products of precious metal and refining system for E-waste are gold, sliver, platinum, palladium and other precious metals, recovery rate above 99%.
Gold

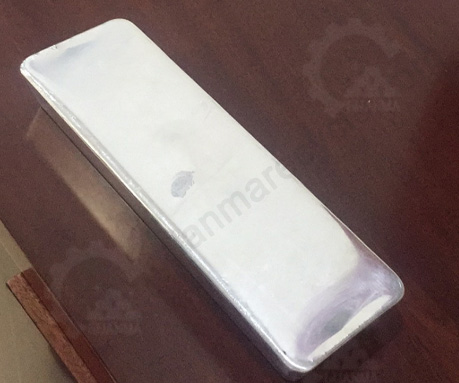

Silver
Palladium
Platinum
Flow Chart
1. Carbonization all raw material and then get granulation;
2. Preparation of all chemical solution, add liquid to raw material will get containing gold, palladium slag and sliver, platinum containing liquid.
3. For containing gold, palladium slag need to dissolved in chemical solution. After platinum deposition process, will get Crude platinum. And the gold need do restrored will get Coarse gold.
4. For sliver, platinum containing liquid, after sliver deposition process, will get coarse sliver. And the palladuim need do oxidation reaction to get sodium chloropalladate.
Product Advantages
1. After processing waste water emissions remain the same;
2. The recycle rate of gold,sliver,platinum,palladium can get more than 97-99%;
3. The purity of the precious metal can get 99.99%;
4. Full Automatic,saving the labor cost;
5. The process is short,use the hydro metallurgical without cyanogens technology,reduce pollution to the environment.
Technical Parameter
Precious Metal Refining Systems for E-WASTE Technical Parameters
Working voltage can be customized, and if you have other requrement and want to know more details, please contact us.(The data in this table are for reference only)
| Model | Capacity kg/day | Power/kw | Size(Length*Width*Height) |
| PGM-50 | 1-50kg | 80kw | 10000*3500*3000mm |
| PGM-100 | 50-100kg | 100kw | 15000*3800*4000mm |
| PGM-200 | 100-200kg | 120kw | 20000*3800*4500mm |
| PGM-500 | 300-500kg | 200kw | 35000*5500*5000mm |
| PGM-1000 | 1000-2000kg | 260kw | 45000*6500*6000mm |
