Lead Smelting Rotary Furnace
A lead smelting rotary furnace is an industrial equipment used for lead smelting, widely applied in the smelting, recycling, and reuse of lead ore. Through high-temperature smelting, this equipment extracts lead elements from lead ore. The lead smelting furnace is not only suitable for processing lead ore but also widely used for treating lead-containing materials such as waste batteries and lead-zinc ores.
Product Description
The lead smelting furnace provided by Guanma Machinery Lead Smelting Rotary Furnace Manufacturer has a metal recovery rate of up to 98%.
A lead smelting rotary furnace is smelting unit engineered for lead smelting, lead recycling, and lead melting from diverse raw materials. Guanma Machinery, a China lead smelting rotary furnace factory, designs short rotary furnaces for lead smelting that deliver 98 % metal recovery.
Raw Material

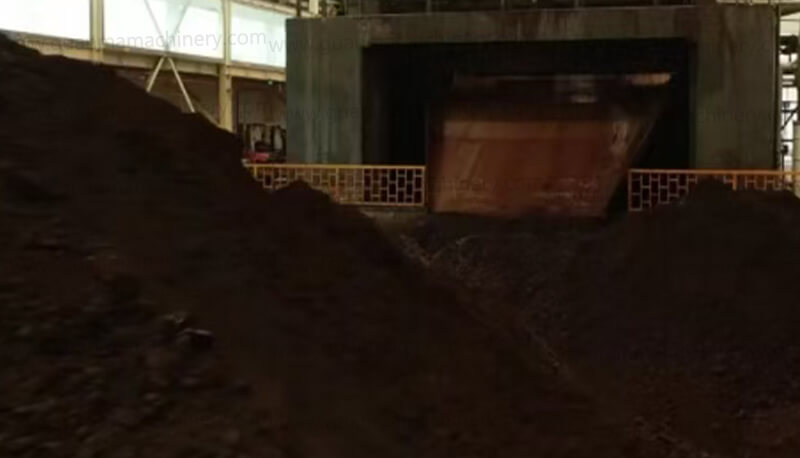

Lead Paste
Lead Ores

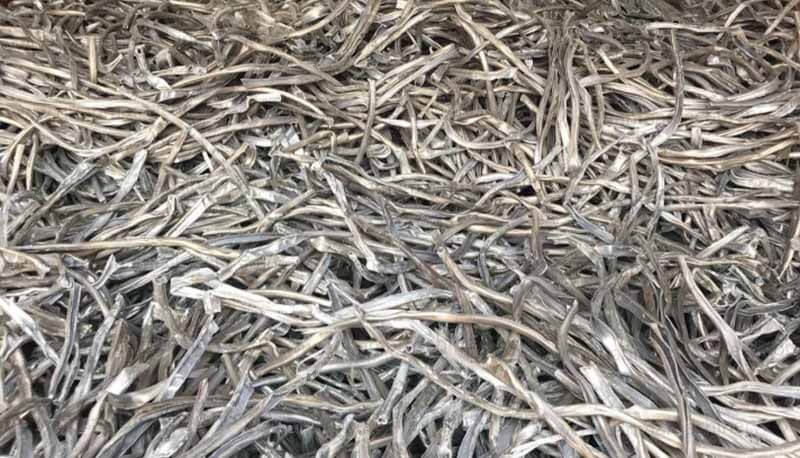

Lead Scrap

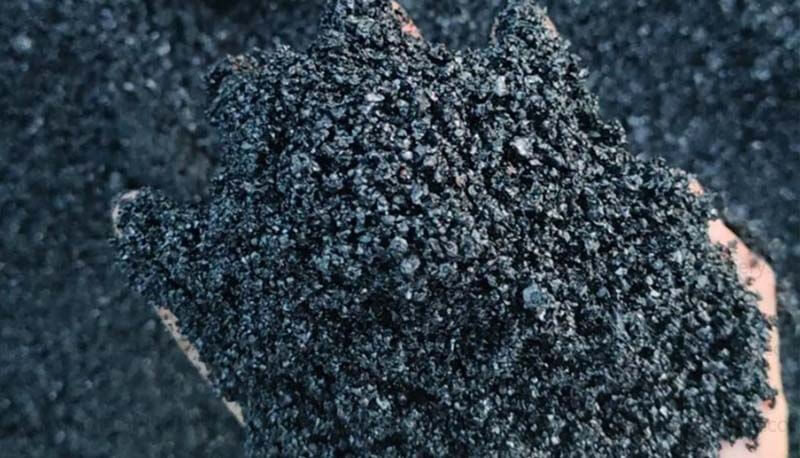

Lead Slags
🔋 Used lead-acid batteries (paste, grids, terminals)
🏭 Lead-containing residues and scraps
⛰️ Lead concentrate (after sintering)
🔧 Lead-bearing dust from pollution control equipment
🧱 Lead oxide materials
Final Product
Crude Lead

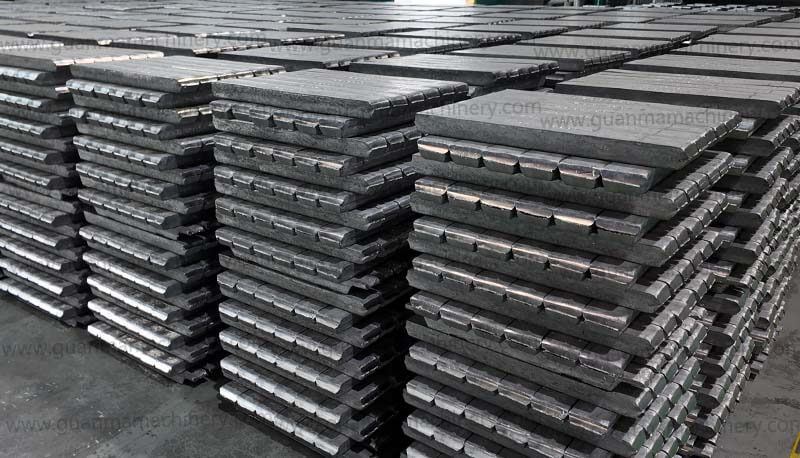

Lead Alloy Ingots
🏭 Crude lead bullion (96-99% purity)
📊 Lead alloys (with specific composition requirements)
🔋 Recycled lead for battery manufacturing
🛡️ Lead sheets for radiation shielding
🔩 Lead products for various industrial applications
Flow Chart
Lead Smelting Rotary Plant Process Flow
1. Raw Material Preparation: Lead ore, waste batteries, and other materials are crushed, screened, and pre-treated.
2. Smelting: The pre-treated materials are fed into the lead smelting rotary furnace, where high-temperature smelting separates the lead elements.
3. Cooling and Separation: The molten lead is cooled through a cooling system to form lead ingots.
4. Slag Treatment: Residual slag is discharged separately for further processing or safe disposal.
5. Exhaust Gas Treatment: Emissions generated during the smelting process are treated to minimize environmental pollution.
Technical Parameter
| Items | Technical Data |
|---|---|
| Raw Materials Feeding Capacity | 5t/Furnace, 10t/Furnace, 20t/Furnace, 40t/Furnace, 60t/Furnace |
| Processing Capacity | 2t, 3t, 5t, 10t, 15t, 20t, 25t, 30t, 40t, 50t… Lead Contained Materials/Furnace |
| Rated Power | Based on Furnace Capacity |
| Furnace Size | Based on Furnace Capacity |
| Furnace Material | Boiler Steel Q345, Thickness: 20mm |
| Refractory Material | 18 Magnesia-Chrome Brick, Quantity: Based on Furnace Capacity |
| Rotation Angle | 360° |
| Rotation Speed | 0-1 rpm |
| Smelting Time | 6~8h (Depends on Materials Condition) |
| Nature Gas Consumption | ≤300m³/h (Diesel Separately Calculated) |
| Discharged Crude Lead Purity | 95%-98% |
| Land Space Furnace | Based on Furnace Capacity |
| Environmental Protection Equipment | Based on Furnace Capacity |
Why Choose Our Lead Smelting Rotary Furnace?
Customized Solutions: We offer tailored designs to meet specific processing requirements and raw material characteristics.
Quality Assurance: All our furnaces undergo rigorous testing before delivery to ensure performance reliability.
Comprehensive Service: We provide installation guidance, operator training, and after-sales support worldwide.
Innovative Features: Our furnaces incorporate advanced sealing technology, efficient heating systems, and user-friendly control interfaces.
Environmentally Compliant: Designed to meet international environmental standards for emissions and workplace safety.
Contact guanma machinery today to discuss your lead smelting requirements and discover how our rotary furnace for lead can enhance your operation’s efficiency and profitability. If you have lead refining needs, learn about our lead refining plants.
