Lead Acid Battery Crushing Separation Line
Guanma Machinery uses the fully automatic lead-acid battery crushing separation line to separate lead and plastic for recycling. Lead recovery rate ≥99%.
Product Description
Raw Material

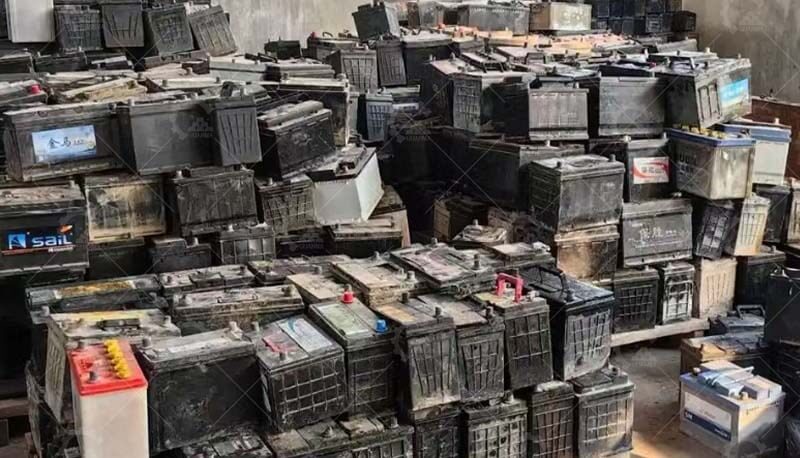

Car Batteries

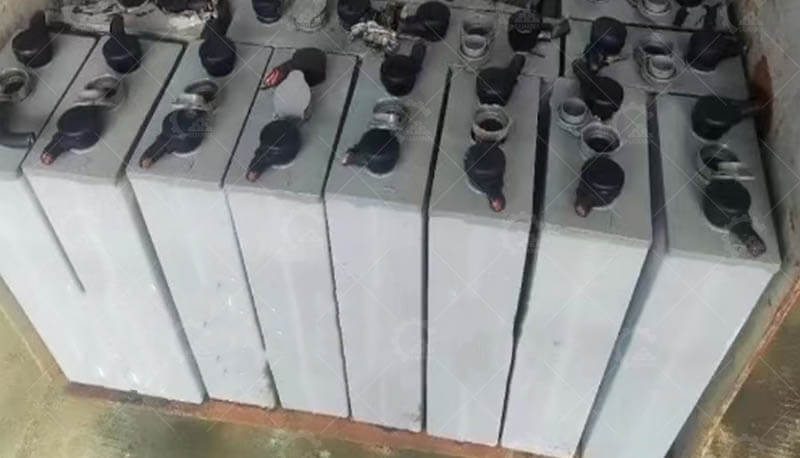

Forklift Battery

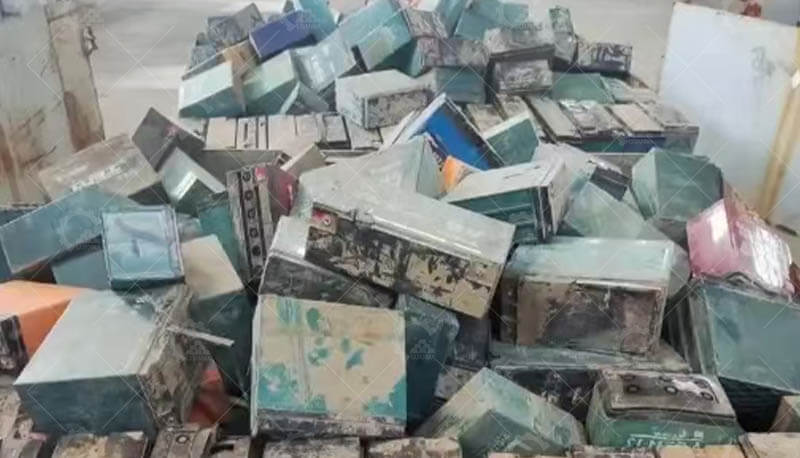

Electric Vehicle Batteries
Truck Battery
This automatic lead-acid battery crushing separation line can process all types of lead acid battery directly including power batteries (electric vehicles), starting batteries (cars), energy storage batteries (solar energy), backup power supplies (UPS), Gel batteries(AGB, SLA, VRLA, flooded batteries), etc.
Final Product
Lead Slime
Lead Paste
Lead Grid
Heavy Plastic
Light Plastic
Battery Separator
Crushing and Separation Line Final Product
After two-stage crushing and multi-stage screening, crude lead paste, lead slime, separator, grid lead, heavy plastics, light plastics and unclassified materials can be separated.

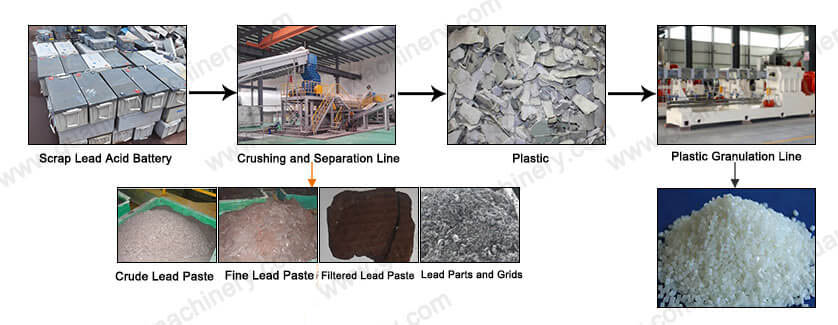

Flow Chart
Lead Battery Crushing and Separation Process
Step 1: Feeding & Preliminary Crushing
Waste lead acid batteries are conveyed to the shredder, which crushes them into 50-100mm fragments (avoids electrolyte splashing with sealed design).
Step 2: Secondary Crushing & Grinding
Fragments are crushed into 5-10mm particles, ensuring full separation of lead, plastic, and separators.
Step 3: Multi-Stage Separation
Magnetic separation: Removes iron impurities (e.g., battery terminals) to improve product purity.
Air separation: Uses wind power to separate lightweight plastic/separators from heavy lead particles.
Vibrating screen: Further classifies lead particles into different sizes (for customized processing needs).
Step 4: Electrolyte Collection & Treatment
Closed pipeline system: Collects dilute sulfuric acid during crushing, avoiding volatilization or leakage.
Neutralization tank: Adjusts pH value to 6-9 (meets international discharge standards) for safe discharge or recycling as industrial water.
Step 5: Dust & Waste Gas Treatment
Bag filter: Captures 99.5% of dust generated during crushing, preventing air pollution.
Activated carbon adsorption tower: Removes harmful gases (e.g., hydrogen sulfide) to meet EU ECODESIGN and US EPA emission requirements.
Step 6: Product Collection & Packaging
Conveyors & silos: Automatically collect lead paste, lead grids, and plastic particles into separate silos.
Technical Parameter
| Item | Technical Data | ||
|---|---|---|---|
| Processing Capacity | 5 t/h | 10 t/h | 15 t/h |
| Rated Power | 220 kW | ~280 kW | ~435 kW |
| Power Consumption | ~25 kW·h/t | 25 kW·h/t | 25 kW·h/t |
| Equipment Space | 30×8×8 m | 42×12×8 m | 45×12×8 m |
| Lead Recovery Rate | ≥99% | ≥99% | ≥99% |
| Advised Land Space | 60×15 m | 100×15 m | 100×15 m |
If you want to start a Lead Battery Recycling Business, you can contact Guanma Machinery, a reliable Lead Acid Battery Crushing Separation Line Manufacturer!
