Complete Turnkey Solar PV Panel Recycling Production Line
Facing the growing challenge of end-of-life or damaged photovoltaic modules? Guanma Machinery provides Complete Solar PV Panel Recycling Production Line. This fully automated system is engineered to maximize material recovery from solar panels, transforming waste into valuable resources.
Our turnkey line efficiently separates and recovers over 90% of materials, including aluminum frames, glass, copper, silicon powder, silver, and plastics, offering a profitable and sustainable answer to the impending solar panel waste stream.
End-to-End Process & Workflow Description
Our solar panel recycling machinery follows a precise, mechanized process to ensure high-purity output and operational safety.
Manual Feeding & Frame Removal
Operators place end-of-life solar panels onto the conveyor. The line first automatically removes and collects the aluminum frame, which is immediately ready for sale or smelting.
Primary Crushing & Delamination
The deframed panel enters an enclosed crusher, breaking it into smaller pieces. This step begins the separation of glass from the inner laminate (EVA/backsheet).
If you are using double-glass solar panels, please check the solar panel pyrolysis process line.
Precise Grinding & Sieving
The fragments undergo fine grinding. A multi-stage sieving system then classifies the material, separating larger glass shards from the finer polymer and metal mix.
Electrostatic & Gravity Separation

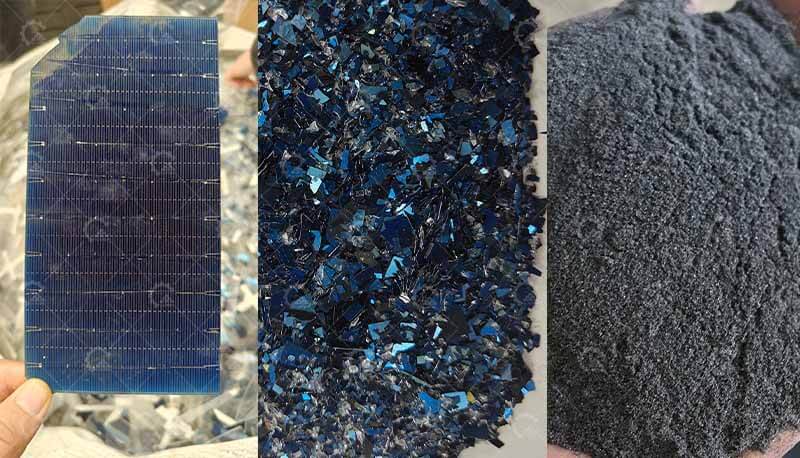

This core PV module recycling technology uses electrostatic and gravity separators. It expertly isolates conductive metals (copper, silver) from non-conductive silicon powder and plastics, achieving high-purity material streams.
Dust Collection & Emission Control
An integrated, high-efficiency cyclone and baghouse dust collection system captures fine particles, ensuring a clean workshop environment and meeting strict air emission standards.
PLC Control System: Centralized touchscreen control for easy operation and monitoring of the entire solar waste processing plant.
Comprehensive Project Support
We provide more than just machines; we deliver a complete, operational solution.
Floor Space & Layout: Our engineers provide detailed layout plans tailored to your workshop.
Delivery, Installation & Training: Delivery time is 30-45 days after order confirmation. Our expert technicians oversee installation, commissioning, and provide hands-on training for your operators.
After-Sales Support: We offer sales support, remote assistance, and readily available spare parts.
Transparent Investment Overview
Investing in our complete solar panel recycling plant is a clear, calculated decision.
Main Machine Cost: USD $100,000 – $250,000 (varies based on configuration and capacity).
Auxiliary Equipment: Includes dust collector, electrical cabinets, conveyors, etc. (~10-20% of main line cost).
Installation & Commissioning: Typically quoted separately based on site conditions.
Shipping: FOB or CIF terms available, with clear cost breakdown.
Why Choose Guanma’s Solar Panel Recycling Equipment?
Our systems are designed for high throughput, maximum material recovery, and low operational cost, ensuring a rapid return on investment (ROI) for businesses involved in end-of-life PV panel disposal and renewable energy equipment recycling.
Ready to Build Your Future in Solar Panel Resource Recovery?
Contact guanma machinery today for a detailed quotation, project layout, and to discuss how our complete solar pv panel recycling production line can meet your specific business goals.
đŸ“© Get Your Free Quote Today
Contact us today to discuss your project, capacity requirements, and target materials. Our team will reply within 24 hours with a customized proposal. You can also reach us directly at [email protected] — we are here to help!
